8mm Rib Height Galvanized Rib Lath Mesh 0.30mm Thickness 600mm Width

8mm Rib Height Galvanized Rib Lath Mesh 0.30mm Thickness 600mm Width

Rib lath Mesh JF0708 have 7 Ribs .,The hole size is 8*12mm.This is drawn into the strip through professional machine cut expansion.

it is a completely non-expansion of the network connection of the steel, the material from the pre-galvanized steel . because of its special mesh and nets uniform surface of the V-shaped rib structure, making flat screen its strength characteristics. Widely used in suspended ceiling, light steel spacer grout paint.

Made of hot galvanized steel punching expansion is made with a V-shaped ribs to increase the tensile strength. Longitudinal stiffeners make large depth of coating applicator has a uniform depth. Widely used in plaster walls and suspended ceilings, plastering construction substrates.

Usage:

1. High rise residential light compartment, firewall;
2. Constructed compartment door, partition;
3. Floor slabs, partition walls
4. Within a permanent workshop walls, fences;
5. Double-walled basement moisture
6. Combining seam construction work;
7. Tunnels, sewers, wall project;
8. Laval Foundation, docks, retaining walls;
9. Flat and arched floor
10. Nuclear power plants, storage tanks and other circular shape structure;
11. Landscaping sculptures and other special projects;
12. Slope protection, embankments and other projects.

Regular size:

Mesh hole : 8*12mm
The sheet's thickness: 0.3mm
Rib height: 8mm
Rib distance:100mm
Width:600mm
Length:2-3m

Advantages:

1, Filling self-compacting, vibration-free;
2, Pouring Free dismantle Free clean-up;
3, no roughened surface to provide an effective combination;
4, small size, light weight, easy handling;
5, easy to cut, easy to make steel throughout, easy to tie nail;
6 to prevent violent mold, keeping the site clean;
7, and easy drainage mesh, and reinforcing structure;
8, to prevent the concrete surface cracks;
9, labor, material saving, high efficiency;
10, saving template support material.

Galvanized Sheet Rib Lath Mesh

0.30mm Thickness Rib Lath Mesh

600mm Width Metal Rib Lath

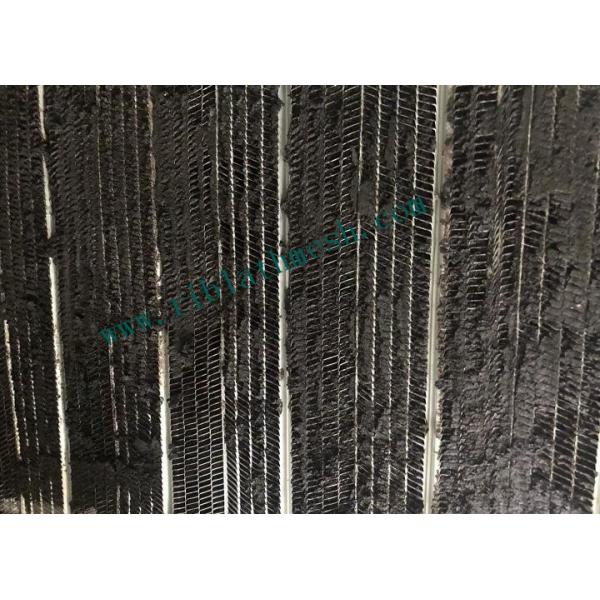

8mm Rib Height Galvanized Rib Lath Mesh 0.30mm Thickness 600mm Width Images
